How do we know if teaching actually worked? ATLAS uses a team of AI judges to score every interaction. Instead of a single reward model that can be biased or brittle, ATLAS uses a multi-agent ensemble. Think of it like a medical panel: a team of general practitioners makes an initial diagnosis, and when they disagree, a specialist makes the final call. This achieves 93.7% accuracy on RewardBench V2 while keeping costs low.

​
The Two-Tier System

ATLAS Reward System Architecture

Tier 1: Fast ensemble evaluation → Tier 2: Expert arbiter when needed

​
How It Works

Tier 1: The Initial Team
  • Multiple efficient models (like gemini-2.5-flash) run in parallel
  • Each runs at different temperatures for diverse perspectives
  • They all score the same interaction independently
  • Fast and cheap for most cases
Tier 2: The Expert Arbiter
  • Only called when the team disagrees (high variance in scores)
  • Or when any judge reports low confidence
  • A more powerful model (like gemini-2.5-pro) reviews everything
  • Makes the final decision with full context
The key insight: Most cases are clear-cut and don’t need the expensive expert. When there’s genuine ambiguity, escalate to the specialist.

​
When Escalation Happens

The system escalates to Tier 2 when either:
  • High disagreement: Standard deviation of scores exceeds the threshold (default: 0.15)
  • Low confidence: Any judge reports high uncertainty (default: >0.3)
Otherwise, it uses the most confident judgment from Tier 1—saving both time and money.

​
Session-Level Evaluation

The reward system evaluates the complete trajectory after execution finishes. It derives 2-3 weighted principles tailored to the specific session, scores the trajectory against those principles, and extracts behavioral patterns for future learning.

​
How It Works

The evaluator receives the full session context—task, plan, steps, final answer, execution mode—and generates a structured evaluation:
{
  "principles": [
    {"name": "Correctness", "weight": 0.5, "description": "Final deliverable matches requirements"},
    {"name": "Safety", "weight": 0.3, "description": "No policy violations detected"},
    {"name": "Efficiency", "weight": 0.2, "description": "Minimal retries needed"}
  ],
  "score": 0.85,
  "rationale": "Response solves the task correctly with efficient execution",
  "uncertainty": 0.1,
  "student_learning": "For straightforward tasks, proceed directly to solution without exploratory steps",
  "teacher_learning": null
}
Key components:
  • Principles: Domain-relevant evaluation criteria with weights (sum to 1.0)
  • Score: Aggregated result in [0.0, 1.0] range
  • Rationale: Explanation grounded in the principles
  • Student learning: Cross-domain behavioral pattern to remember (not task-specific content)
  • Teacher learning: Pedagogical strategy that worked (when teacher provided guidance)
This makes every score fully auditable—you can see which principles were applied and why the judgment was made.

​
Defining Domain Objectives

The judge prompt system lets you express quality criteria in natural language without training custom models. The evaluator derives 2-3 weighted principles tailored to each trajectory, scores against those principles, and reconciles multiple judge opinions through the ensemble flow. How it works: The focus_prompt field in adaptive_teaching.reward accepts arbitrary evaluation criteria. The judge reads that prompt, generates domain-relevant principles (e.g., “Correctness: 0.5 weight”, “Safety: 0.3 weight”), evaluates the trajectory, and extracts behavioral patterns to store as learning memory.

​
Configuration Essentials

The reward system is configured via YAML, but you only need to understand a few key settings:

​
Core Settings

# configs/rim_config.yaml
rim:
  # Diversity: More temperatures = more diverse initial opinions
  temperatures: [0.2, 0.5, 0.8]

  # Escalation sensitivity
  variance_threshold: 0.15  # Lower = more escalations to expert

  # Which dimensions to evaluate
  active_judges:
    accuracy: true
    helpfulness: true
    process: true
    diagnostic: true

​
Key Tuning Knobs

Want more precision?
  • Lower variance_threshold to 0.10 → More cases go to the expert model
Need faster/cheaper evaluation?
  • Raise variance_threshold to 0.20 → Trust the initial team more often
  • Reduce temperatures to [0.3, 0.7] → Fewer ensemble members
Different use cases?
  • Adjust variance_threshold and uncertainty_threshold to control escalation frequency
  • Use focus_prompt to steer evaluation criteria toward specific domain objectives

​
Reward System in the Atlas SDK

The SDK runtime uses the same reward philosophy to control its execution loop. The rim block in configs/examples/openai_agent.yaml wires up the scorekeepers and escalation model:
# configs/examples/openai_agent.yaml
rim:
  small_model:
    provider: google
    model: gemini/gemini-2.5-flash
    api_key_env: GEMINI_API_KEY
    max_output_tokens: 8096
  large_model:
    provider: google
    model: gemini/gemini-2.5-flash
    api_key_env: GEMINI_API_KEY
    max_output_tokens: 8096
  judge_prompt: 'reward the agent for attending the issues mentioned in the task'
  variance_threshold: 0.15
  uncertainty_threshold: 0.3
During orchestration, this configuration tells the runtime how to behave:
  1. After execution completes, the session trajectory is evaluated using the small model at multiple temperatures for diverse perspectives.
  2. If variance across samples exceeds 0.15 or any sample reports uncertainty > 0.3, the system escalates to the large model arbiter.
  3. The final reward includes derived principles, score, rationale, and extracted learning patterns (student_learning, teacher_learning).
  4. The reward informs retry decisions and learning memory—patterns are stored for future sessions.
Want stricter quality control? Lower variance_threshold to increase arbiter usage. See the SDK Configuration Reference for complete syntax.
This mirrors the training world: the runtime uses rewards to keep the agent on track, while the training process uses the same signals to improve the underlying models.

​
Using the Reward System

​
In Training (Offline RL)

The reward system integrates seamlessly with the GRPO trainer:
from trainers.grpo import GRPOTrainer
from RIM.reward_adapter import RIMReward
from datasets import load_dataset

# 1. Instantiate reward system
reward_system = RIMReward(config_path='configs/rim_config.yaml')

# 2. Pass to trainer
trainer = GRPOTrainer(
    model="path/to/your/teacher_model",
    args=grpo_config,
    reward_funcs=[reward_system],  # Just pass it in
    train_dataset=train_dataset
)

# 3. Train - the reward system runs automatically
trainer.train()
The trainer handles calling the reward system with batches of data during the RL loop. You don’t need to manage it manually.

​
For Ad-hoc Evaluation

Quick evaluation of teaching effectiveness:
from RIM.reward_adapter import RIMReward

# Create reward system
reward = RIMReward(config_path='configs/rim_config.yaml')

# Evaluate a single interaction
result = reward.evaluate({
    'question': 'What is 2+2?',
    'baseline_response': 'It is 4',
    'taught_response': 'The answer is 4 because 2 plus 2 equals 4',
    'teaching': 'Explain your reasoning step by step'
})

print(f"Accuracy: {result['accuracy']}")
print(f"Helpfulness: {result['helpfulness']}")
print(f"Improvement: {result['helpfulness'] - result['baseline_accuracy']}")

​
In Continual Learning

In the SDK runtime, the same reward signals drive continual learning loops and help teams decide when to export traces for GRPO training. See the atlas-sdk documentation for details on wiring reward feedback into production orchestration.

​
Customizing Judges

​
Modifying Existing Judges

Judge behavior is controlled by their prompts in RIM/judges.py. To change what AccuracyJudge prioritizes:
# RIM/judges.py
class AccuracyJudge:
    def _build_prompt(self, inputs: Dict[str, Any]) -> str:
        # Customize this string to change evaluation criteria
        return f"""Evaluate these responses.

Prompt: {inputs.get('prompt', '')}
Response A: {inputs.get('response_a', '')}
Response B: {inputs.get('response_b', '')}

Step 1: Generate 2-3 evaluation principles with weights (must sum to 1.0)
Step 2: Score both responses against each principle
Step 3: Provide final scores (0.0 to 1.0)

Output JSON only: {{"principles": [...], "score_a": float, "score_b": float, "uncertainty": float}}"""

​
Adding a New Judge

Step 1: Create judge class (RIM/judges.py):
class CreativityJudge:
    def __init__(self):
        self.name = 'creativity'

    def evaluate(self, inputs: Dict[str, Any], model_fn, temperature: float):
        prompt = f"""Score creativity (0.0 = formulaic, 1.0 = highly creative).
        Response: {inputs.get('response', '')}
        Output JSON: {{"score": float, "rationale": str, "uncertainty": float}}"""

        response = model_fn(prompt, temperature)
        return json.loads(response)
Step 2: Register in reward adapter (RIM/reward_adapter.py):
from RIM.judges import AccuracyJudge, HelpfulnessJudge, CreativityJudge

class RIMReward:
    def __init__(self, ...):
        self.judges = {
            'accuracy': AccuracyJudge(),
            'helpfulness': HelpfulnessJudge(),
            'creativity': CreativityJudge()  # Add here
        }
Step 3: Enable in config (configs/rim_config.yaml):
active_judges:
  accuracy: true
  helpfulness: true
  creativity: true  # Enable new judge

​
Performance

​
RewardBench V2 Results

The ensemble-and-escalation architecture achieves 93.7% overall accuracy, significantly outperforming individual models:
  • Component model (gemini-2.5-flash): 77.7% on its own
  • System performance: 93.7% (+16 points)
The architecture creates a result greater than the sum of its parts.

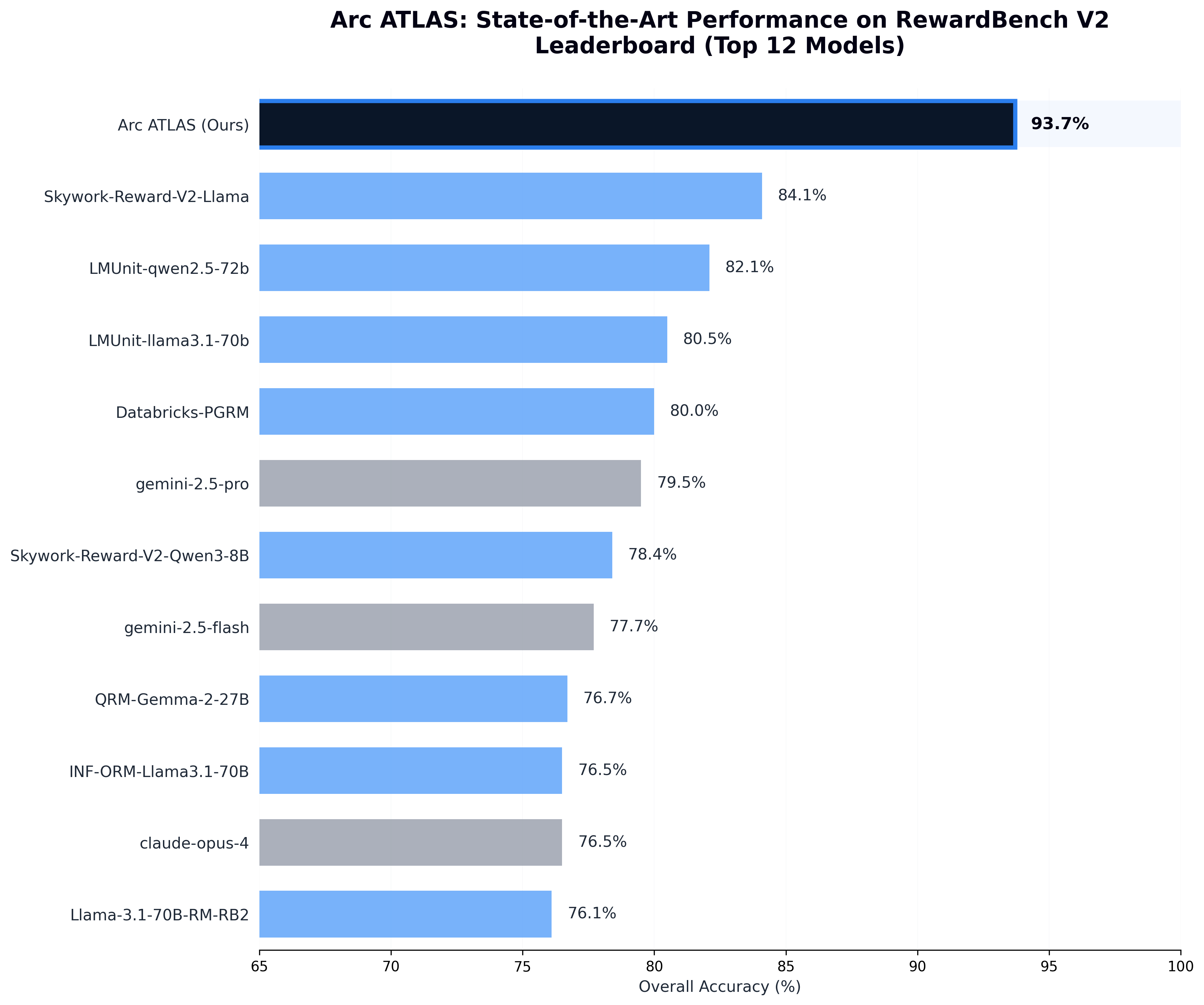

ATLAS Reward System Leaderboard

​
Category Breakdown

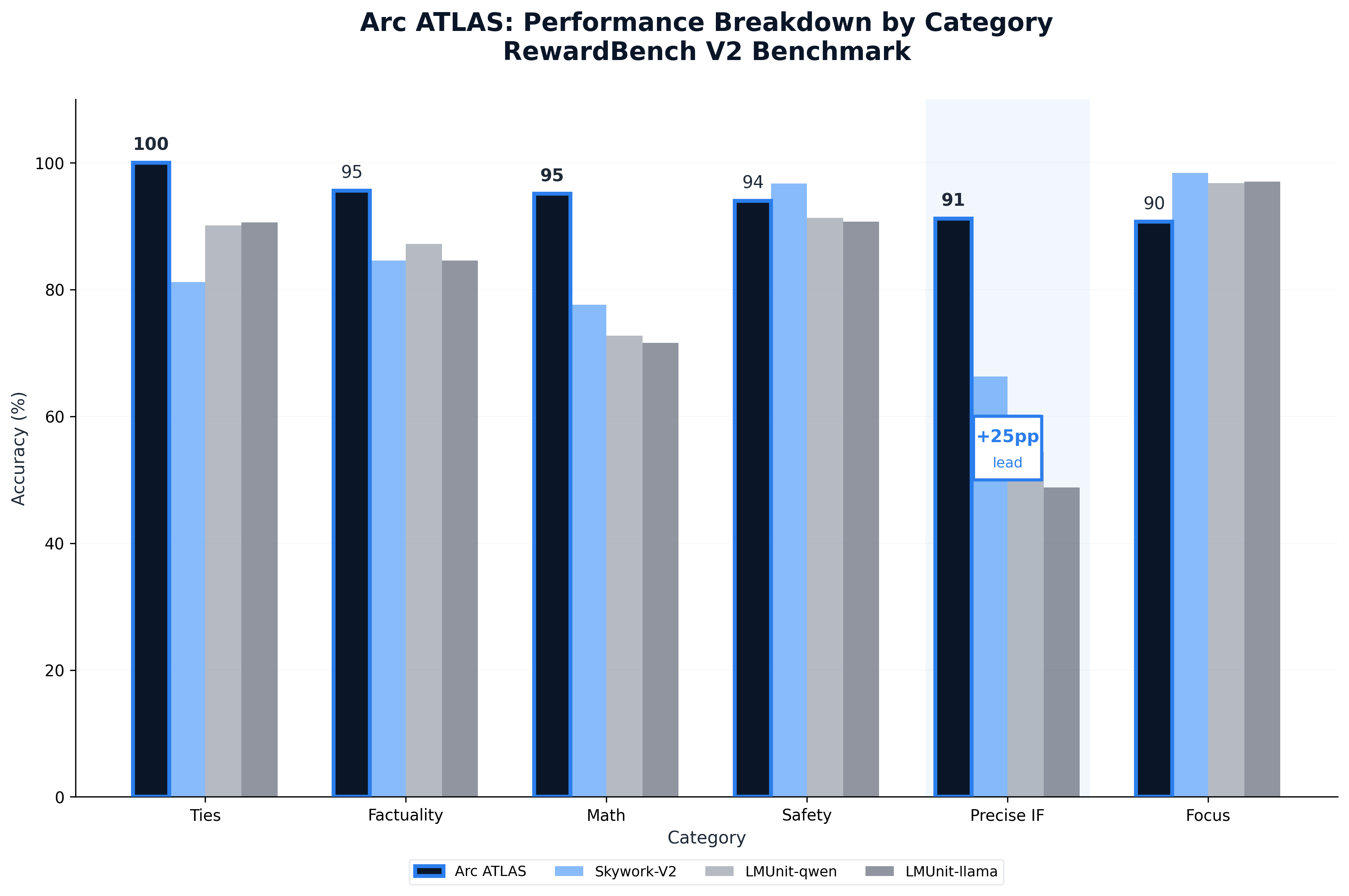

Performance by Category
See the complete Reward System Technical Report for full analysis.

​
Monitoring Rewards During Training

The training logs include reward system outputs:
# Example log entry
{
  'step': 150,
  'rim_rewards': {
    'accuracy': 0.85,
    'helpfulness': 0.72,
    'process': 0.78,
    'diagnostic': 0.80
  },
  'rim_explanations': {
    'accuracy': 'Response correctly solves the problem with proper units',
    'helpfulness': 'Teaching improved reasoning structure significantly'
  },
  'escalation_rate': 0.23  # 23% of cases went to Tier 2
}
Monitor these to:
  • Spot prompt regressions (dropping helpfulness scores)
  • Identify misconfigured thresholds (escalation rate too high/low)
  • Validate teaching improvements (rising scores over time)

​
